Shofu Crown & Bridge Preparation Kit

The Crown & Bridge Preparation Kit is designed to offer speedy, simple and accurate tooth preparation for a wide range of crown and bridge restorations, veneers and onlays.

• Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points.
• 2 special “Tissue-Protective End-Cutting Burs” for shoulder preparation and finishing under gingival margins without injuring the soft tissue.
• These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
• 14 kinds of specially selected FG Diamond Points in 3 different grits: Regular (No marking on shank); Fine (Red band on shank); and SuperFine (Yellow band on shank)

TAPERED FLAT ENDED DIAMOND POINTS:

• Regular Grit – #201,#101
• SuperFine Grit – SF201, SF101
• For crown & bridge and metal inlay preparation

TAPERED ROUND ENDED DIAMOND POINTS:

• Regular Grit – #102R
• SuperFine Grit – #SF102R
• For crown & bridge preparation with a heavy chamfer

TAPERED ELLIPSE:

• Regular Grit – #104R
• SuperFine Grit – #SF104R
• For crown & bridge preparation with a light chamfer and the superfine grit for finishing restorative materials

TISSUE PROTECTIVE END-CUTTING:

• Fine Grit – #F414SS, F414S
• 1.0mm depth for anterior tooth, all ceramic crown preparation

ROUND INVERTED CONE:

• Regular Grit – #265R, #SF265R
• or buccal, palatal and lingual reduction during crown & bridge preparation

DOUBLE CONE:

• Regular Grit – #148
• For occlusal reduction during crown & bridge preparation

DEPTH CUTTING DIAMOND POINTS:

• Regular Grit – #122
• Specially designed to create depth orientation grooves

Maximum recommended speed for the burs:

• Less than 450,000 rpm: 201, SF201
• Less than 300,000 rpm: 101, 102R, 104R, 265R, SF102R, F414SS, F414S, SF101, SF104R, SF265R
• Less than 160,000 rpm: 148
• Less than 120,000 rpm: 122

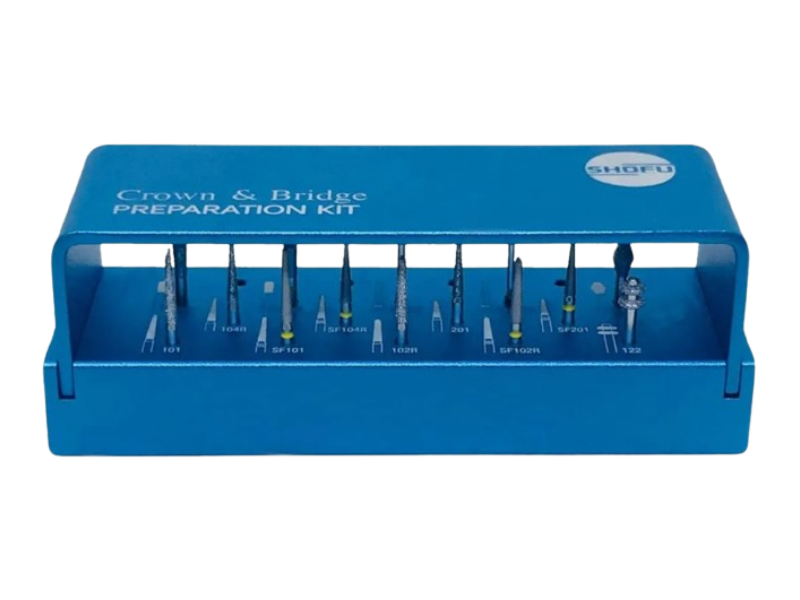

The Kit contains:

• Diamond Points FG x 14 in 3 different grits (Regular, Fine and Superfine)
• Regular grit: 201, 101, 102R, 104R, 265R, 148 , 122
• Fine grit: F414SS, F414S
• Superfine grit: SF201, SF101, SF102R, SF104R, SF265R
